Simple driving-creative use of the inverted three-wheel structure:

The first two wheels are steering wheels, which can swing with the tilt of the body;

The rear single wheel is the driving wheel, and the forward of the vehicle is driven by the electric motor mounted on the rear wheel;

The body is a folding frame that can take the rear wheels between the front wheels.

result:

Only one operation is needed to complete the folding or unfolding operation;

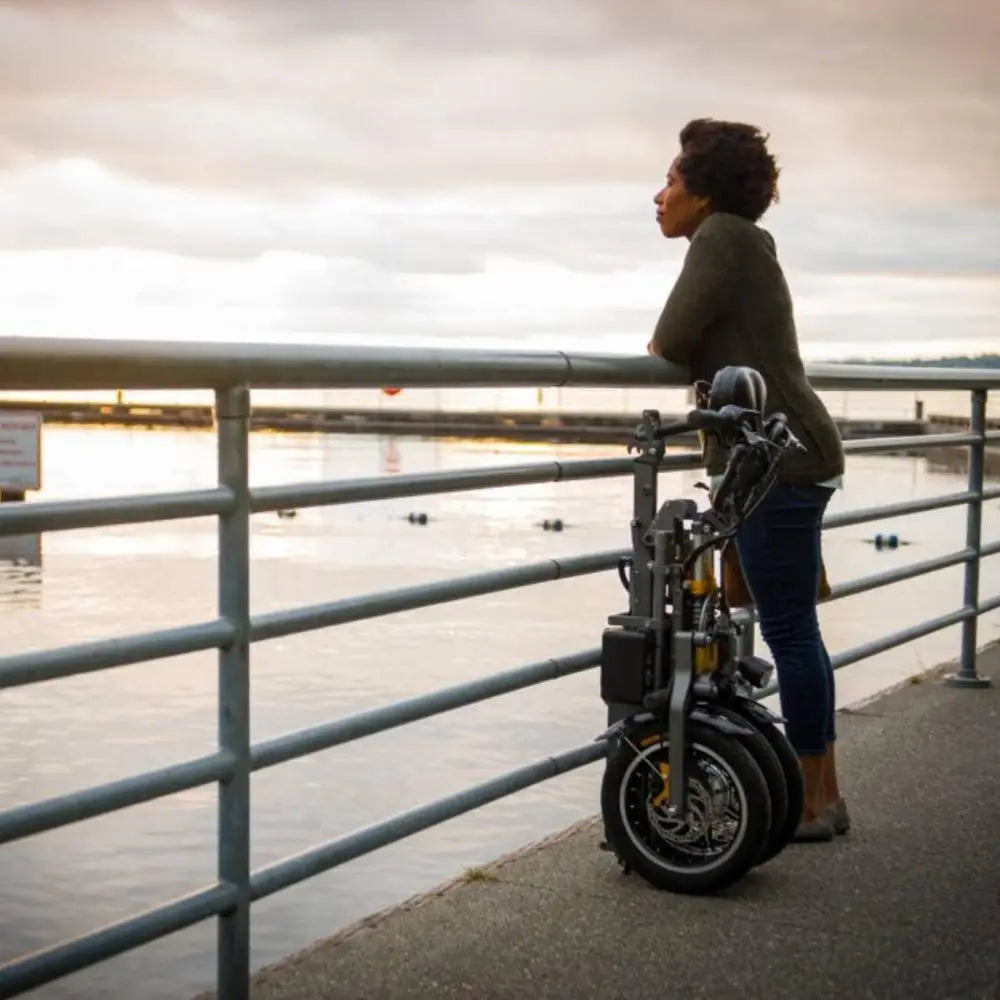

After the folding is completed, the vehicle can immediately enter the towing, pushing, and standing state required for carrying.

Expanded size: 135*95*52cm

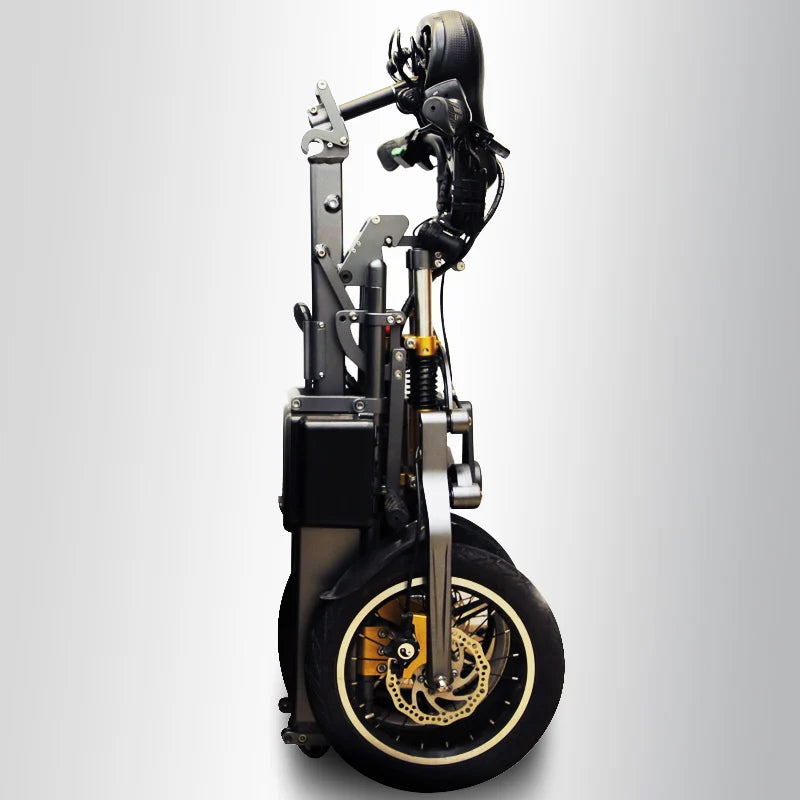

Folding size: 106*57*38cm

Weight: 22.25 KGS

Load: 100kg

Front wheel parameters: 14*1.75 wire wheel

Motor parameters: 250W motor or 350w

Speed: 25-35km/h

Range: about 30-70km

LCD Display: yes

Battery parameters: lithium battery 48V 7.2AH or dual battery (48v7.2ah+7.2ah)

Charging time: 4-5h

Brake system: hydraulic disc brake

Climbing: 40°

Front light: yes

Frame: Aluminum alloy frame, folding design

Front fork: shock absorber front fork independent suspension, cornering, sharp corners, wet roads are capable of excellent steering

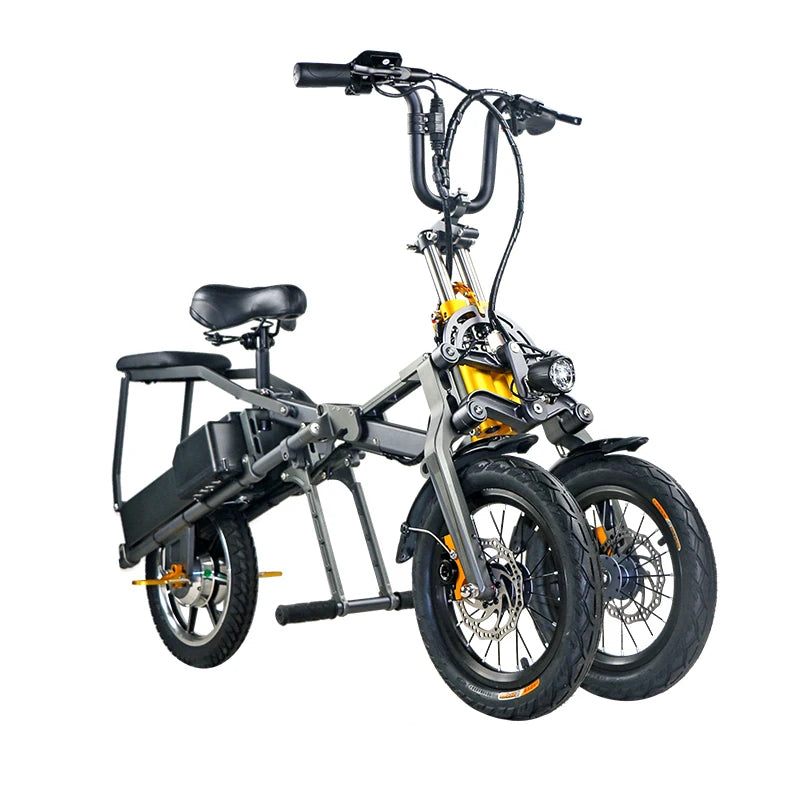

Inverted three-wheeled electric bicycle

Inverted three-wheeled electric bicycle (aluminum-magnesium alloy wheel version) If you are interested in this version, please contact customer service. thanks
